Clearing the cache

As a template developer or administrator, verify that your changes are correctly displayed in the OXID eShop.

Changes to templates, configurations, or modules are often only properly applied in the shop after clearing the cache. Therefore, clearing the cache is essential.

The OXID Admin Tools module provides two complementary access options:

• Manually: Via a button in the admin backend – simple and without command line

• Via the OXAPI: Remote access using a GraphQL-based API

Delete only what is necessary for the current task to avoid impacting other systems.

Note that the shop may respond more slowly with empty caches until they are refilled.

Cache Area	Action	Use Case (when to clear?)
Template Cache	Removes compiled Twig template files.	After changes to .tpl files, theme overrides, or CMS elements.
Internal Cache	Clears the internal caching mechanism of OXID eShop.	After changes to configurations or language files.
Container Cache	Clears the cache of the dependency injection container (based on Symfony).	After changes to the DI setup, e.g., new services or events.
Module Caches	Clears caches related to installed modules.	After modifying a module (activation/deactivation automatically clears the module cache).
Template Chain Cache	Clears the cache for template extension chains (new in OXID eShop 7.5). Speeds up resolution of templates that are overridden by multiple modules.	After changes to module template overrides, especially in shops with many active modules.
Entire Cache	Performs a full cache reset (combines all caches listed above).	In case of severe errors or after major updates.

Clear Cache Manually

Manually clear individual caches or all caches of the OXID eShop.

Procedure

1. Choose Service ‣ Tools.

2. Decide whether to clear the entire cache or only specific areas (Fig.: Clearing the cache, item 1).

3. Choose the Clear button.

Fig.: Clearing the cache

Result

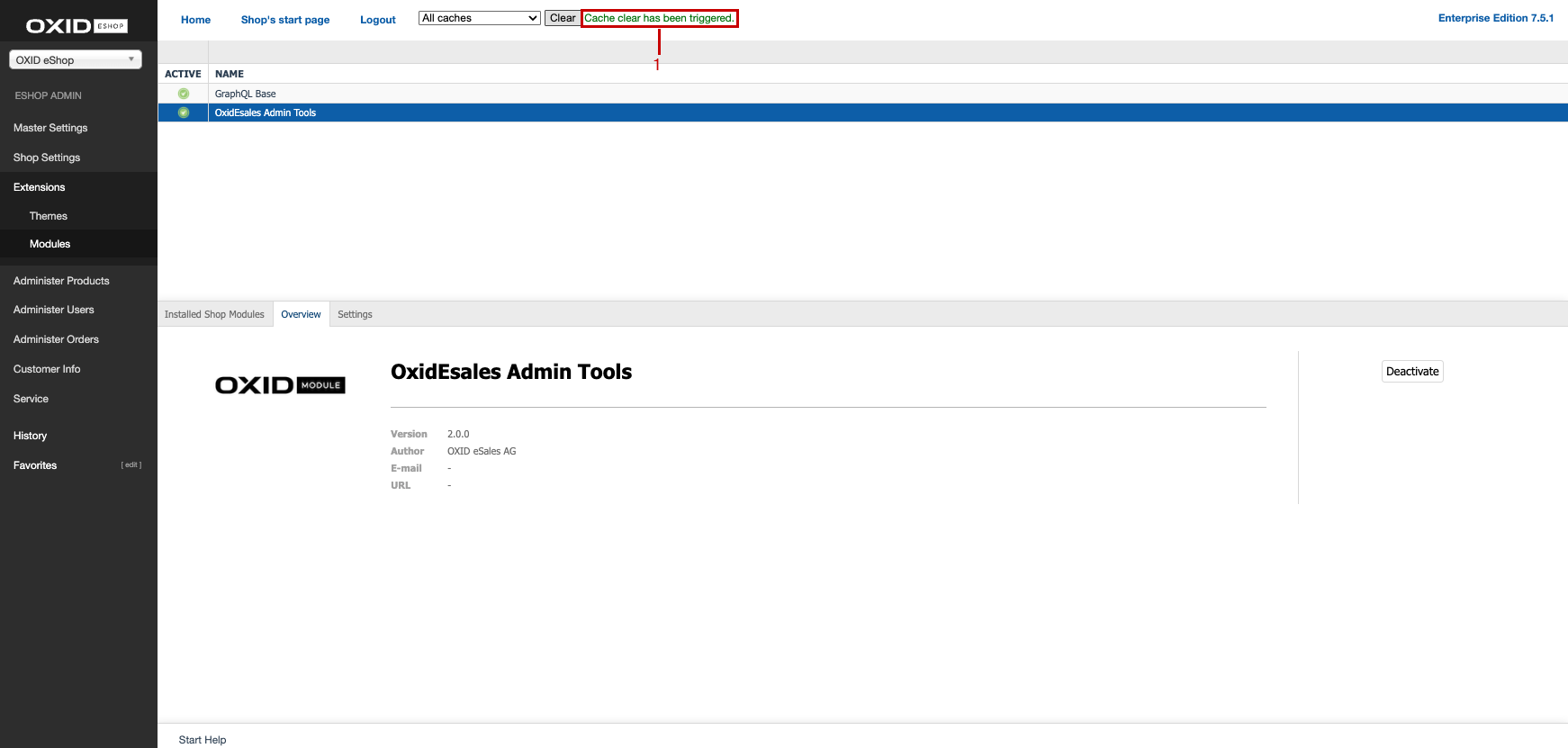

A message appears indicating that cache clearing has been triggered via the shop logic (Fig.: Clearing the cache: Result, item 1).

Note

The system does not verify whether the cache was actually cleared.

If the message “Cache clear failure” appears, try triggering the cache clearing again. If the issue persists, investigate the cause. If a module or other component is responsible, report the issue to OXID Support or Product Marketing. Suggestions for improvement are welcome.

Fig.: Clearing the cache: Result

Clearing the cache via OXAPI

Automatically clear individual caches or all caches of the OXID eShop using the OXAPI (GraphQL API).

Prerequisites

• To clear caches via the GraphQL API, the user is authenticated and has the necessary permissions:

  • The Authorization header with bearer token must include a valid OXAPI JWT token with sufficient rights.

  • The user must be a member of the user group gqladmintoolscache.

Procedure

1. Ensure you have a compatible version of oxid-esales/graphql-base installed.

   For example, install version 13.x using the following commands:

   composer require oxid-esales/graphql-base ^13.0.0
   ./vendor/bin/oe-eshop-doctrine_migration migrations:migrate oe_graphql_base
   ./vendor/bin/oe-console oe:module:activate oe_graphql_base


2. Use the following GraphQL mutations:

   Mutation	Function
   clearTemplateCache	Clears the template-related cache.
   clearTemplateChainCache	Clears the template chain cache (new in OXID eShop 7.5).
   clearInternalCache	Clears the internal system cache.
   clearContainerCache	Clears the DI container cache (Symfony).
   clearModuleCaches	Clears the caches of installed modules.
   clearGraphQLSchemaCache	Clears the GraphQL schema cache (only available when the oe_graphql_base module is active).
   clearCaches	Clears all of the above caches simultaneously.

Note

Up to version 1.x, the cache operations were GraphQL queries. From version 2.0 onward, they are GraphQL mutations. Existing integrations must be adjusted accordingly.

Example

The following GraphQL mutation clears all caches:

mutation {
   clearCaches
}
